LADR2
CONTACTS BLOCK

LADT2
CONTACTS BLOCK.

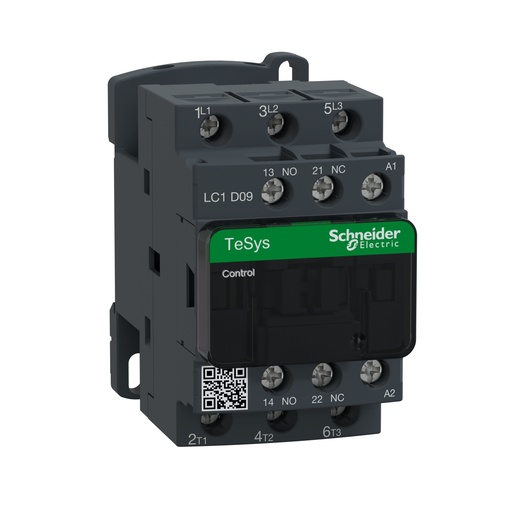

LC1D09B7
3P CONT 9A AC3 4KW 1NO 1NC 24VAC COIL

LC1D09BD
Schneider Electric
3P CONT 9A AC3 4KW 1NO 1NC 24VDC COIL

LC1D09E7
3P CONT 9A AC3 4KW 1NO 1NC 48VAC COIL

LC1D09F7
3P CONT 9A AC3 4KW 1NO 1NC 110VAC COIL

The Schneider LC1D09M7 is a high-reliability 3-pole contactor from the world-renowned TeSys D range. Designed for motor control applications up to 4kW (5.5 HP) at 400V, it features a 220V AC (50/60 Hz) control coil, which is the standard voltage for electrical installations in Egypt.

This contactor is celebrated for its long mechanical and electrical life, providing a secure and durable solution for HVAC systems, pumps, conveyors, and industrial machinery. It comes pre-equipped with 1NO + 1NC built-in auxiliary contacts, allowing for immediate integration into signaling or interlocking circuits without needing extra blocks. Its compact 45mm width and DIN rail mounting make it the ultimate space-saving component for professional panel builders.

Key Technical Features:

Standard 220V AC Coil: Perfectly suited for the Egyptian power grid M7 code signifies 220V).
High Durability: Engineered for up to 15 million mechanical cycles, ensuring low maintenance.
Integrated Auxiliary Contacts: Built-in 1 Normally Open (NO) + 1 Normally Closed (NC) contacts for versatile control logic.
Easy Installation: Standard 35mm DIN rail mounting and high-clarity terminal markings.
Safety & Compliance: Fully compliant with IEC 60947-4-1, ensuring maximum safety for personnel and equipment.

LC1D09Q7
3P CONT 9A AC3 4KW 1NO 1NC 380VAC COIL

3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). It provides a 24V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror certified)

3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). It provides a 48V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror certified)

3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). It provides a 110V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror certified)

3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). It provides a 220V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror certified)

3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). It provides a 380V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror certified)

LC1D128M7
Schneider Electric
TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 25 A - 220 V AC coil

3P CONT 12A AC3 5.5KW 1NO 1NC 24VDC

LC1D12BD
Schneider Electric
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 12 A - 24 V DC coil

LC1D12E7
CONTACTOR 12A 1F PLUS 1O 48V 50 60

LC1D12F7
CONTACTOR 12A 1F+1O 110V 50 60
