CONTACTS BLOCK

ADD ON BLOCK 2 NO -For D & F-Model

ADD ON BLOCK 2 NO + 2 NC -F-Model.

CONTACTS BLOCK

CONTACTS BLOCK

LADR2
CONTACTS BLOCK

LADT2
CONTACTS BLOCK.

LC1D09B7
3P CONT 9A AC3 4KW 1NO 1NC 24VAC COIL

LC1D09BD
Schneider Electric
3P CONT 9A AC3 4KW 1NO 1NC 24VDC COIL

LC1D09E7
3P CONT 9A AC3 4KW 1NO 1NC 48VAC COIL

LC1D09F7
3P CONT 9A AC3 4KW 1NO 1NC 110VAC COIL

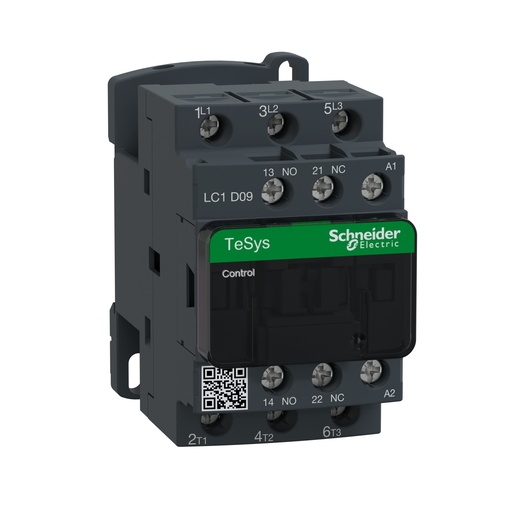

Schneider Electric LC1D09M7 TeSys D 3‑Pole Contactor (9 A – 220 VAC Coil)
The Schneider Electric LC1D09M7 is a premium TeSys D-series, 3‑pole (3 NO) industrial contactor designed for reliable motor control and AC switching applications. Engineered for performance and endurance, it offers:
Rated Current: 9 A (AC‑3), 25 A (AC‑1) up to 440 VAC
Motor Power Capacity: Up to 5.5 kW (400–690 VAC) or 5 HP @ 460 VAC under AC‑3 duty
Coil Voltage: Standard 220 VAC at 50/60 Hz
Durability: 2 million mechanical cycles at AC‑3; 15 million mechanical operations
Certification & Safety: UL, CSA, CCC, GL, DNV, GOST compliant; IEC 60947‑4‑1, IEC 60947‑5‑1 rated impulse withstand 6 kV
Built-In Auxiliary Contacts: 1x No + 1x Nc—ideal for control circuitry
Mounting Style: DIN-rail or panel mount; screw-clamp terminals (1–4 mm² cabling)
As part of the versatile TeSys D lineup, this Schneider Electric-manufactured contactor supports a broad array of industrial automation and motor starter solutions, and accommodates add-ons like overload relays (LRD) and auxiliary blocks. Its compact design, high endurance, and multi-standard approvals make it a top choice for control panels, HVAC systems, and manufacturing machinery.
Country of Origin: France

LC1D09Q7
3P CONT 9A AC3 4KW 1NO 1NC 380VAC COIL

3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). It provides a 24V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror certified)

3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). It provides a 48V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror certified)

3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). It provides a 110V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror certified)

3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). It provides a 220V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror certified)

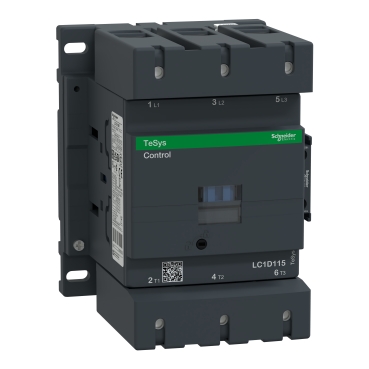

3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). It provides a 380V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror certified)
